1292P912

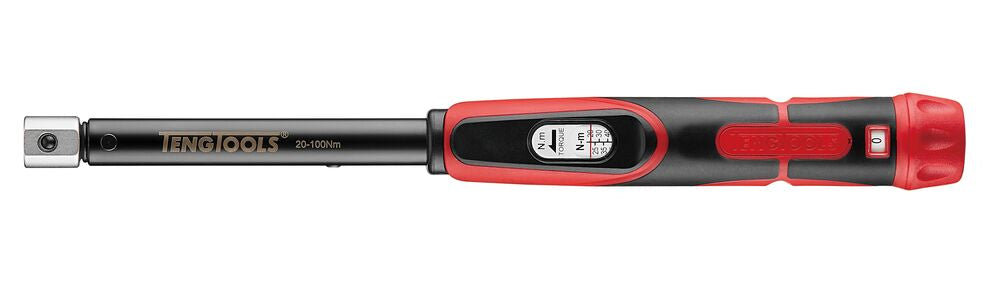

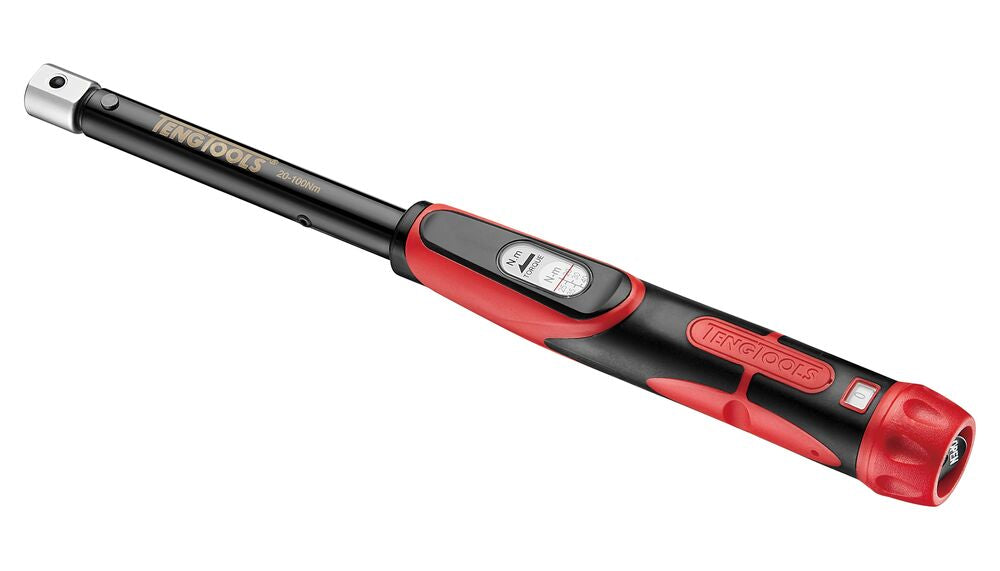

Insert Torque Wrench 9 x 12, 20 - 100Nm

Insert torque wrench for 9×12 mm interchangeable insert tools
Torque range of 20–100 Nm with ±4% accuracy
Click-type mechanism signals when torque is reached
Supports clockwise and counterclockwise torquing
Nm scale with 0.5 Nm resolution
Locking button to secure torque setting
Compact head for access in confined spaces
Ergonomic bi-material grip with marked pressure application point
Individually tested to ISO 6789 standards with unique serial number and Declaration of Conformance

335.67 €

Price excl. VAT 272.90 €

This is a recommended retail price, local deviations may occur

Description

The TengTools 1292P912 torque wrench is designed for use with 9×12 mm interchangeable socket tools within a torque range of 20-100 Nm with an accuracy of ±4%. The click mechanism emits an audible signal when the set torque has been reached. The tool is suitable for both clockwise and counterclockwise torquing, ensuring controlled tightening of right- and left-threaded fasteners. To tighten left-hand threaded fasteners, turn the insert tool around. The Nm scale, with a 0.5 Nm resolution, is simple to adjust and easy to read, allowing for precise torque settings. A locking button ensures that the selected torque is maintained during use. With a compact head, the torque wrench can be used even in tight spaces where larger tools may not fit. The ergonomic two-component handle provides a firm grip, and has a marked section showing where to place the hand for improved accuracy. The tool is supplied in a protective storage case for easy transportation, and has a weight of 862 g and a length of 400 mm. Each torque wrench is individually tested to meet ISO 6789 standards and comes with a unique serial number and a factory-issued 'Declaration of Conformance.'

Attribute	Value
Product Type	Torque Wrenches
Length	400 mm
Primary range	20-100 Nm
Primary scale resolution	0,5
Accuracy	± 4%
Conformance certificate	Factory
Insert tool size	9 x 12 mm
Preset	No
Angular gauge	No
Digital	No
Bi-directional	Yes
Mechanism	Click
Tethering facility	No
Width (mm)	36 mm
